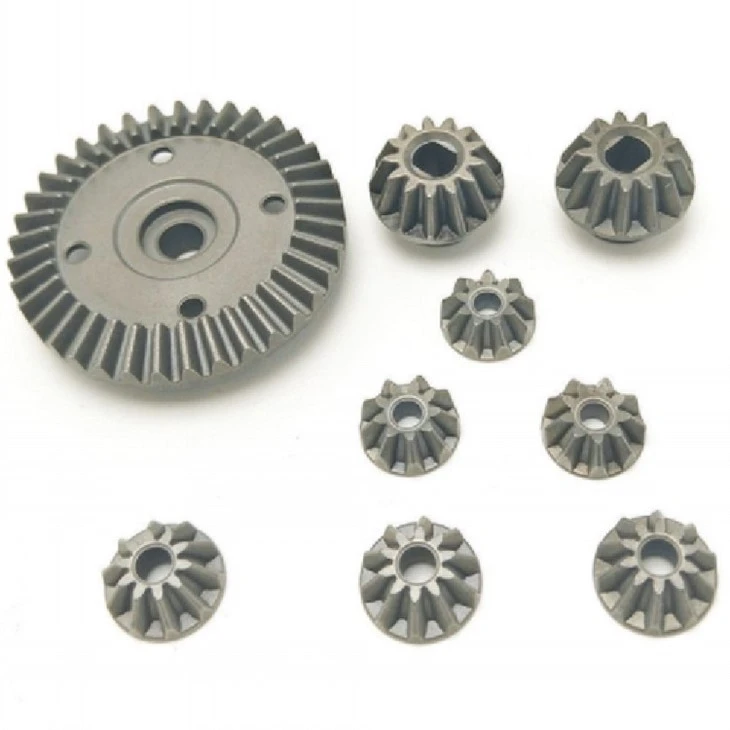

Bevel iav PM Sintered Part

Khoom Taw Qhia

Khoom zoo

Kev tsim cov hmoov hlau metallurgy high-density bevel hniav

Cov qauv siv hluav taws xob belongs rau kev ua haujlwm ntawm lub zog, tshwj xeeb tshaj yog rau hmoov metallurgy high-density bevel gears.

Cov txheej txheem hauv qab:

Bevel gears yog bevel gears, bevel gears, thiab bevel gears feem ntau yog siv los ntawm kev sib kis ntawm ob txoj kab ntsug, tab sis lawv kuj tsim nyog rau kev sib kis ntawm ob lub axes ntawm lwm lub ces kaum.

Cov uas twb muaj lawm tseem muaj qee qhov tsis txaus thaum siv:

1. Thaum ib qho ntawm cov hniav sib kis ntawm qhov chaw ntawm cov hniav bevel muaj qhov sib txawv vim kev sib txhuam mus ntev thiab cuam tshuam rau kev siv, qhov teeb meem tsuas yog daws tau los ntawm kev hloov tag nrho cov hniav bevel. Nws yog ib qho teeb meem heev los hloov tag nrho cov iav thiab ua rau cov khib nyiab tsis tsim nyog.

2. Thaum cov cuab yeej sab nraud raug quab yuam sab nraud thiab vibrates thiab co, cov hniav bevel hauv lub cuab yeej yuav raug muab tshem tawm, kom cov hniav sib kis tsis koom nrog.

3. Kev sib hloov mus sij hawm ntev ntawm cov iav kis tau tus mob yuav ua rau hnav thiab tsim kua muag, ua rau muaj kev puas tsuaj rau cov iav bevel. Tsis muaj kev ntsuas lubrication zoo, thiab cov roj lubricating tsuas yog siv tau manually rau cov iav kis tau tus mob, uas yog qhov nyuaj.

Technical realization cov ntsiab lus:

Lub hom phiaj ntawm cov qauv siv hluav taws xob no yog muab cov hmoov metallurgy high-density bevel hniav los daws qhov teeb meem hauv cov cuab yeej siv yav dhau los saum toj no uas thaum muaj qee yam tsav hniav ntawm cov hniav bevel cuam tshuam los ntawm qhov sib txawv vim kev sib txhuam mus ntev, tag nrho bevel tsuas yog siv tau. Qhov teeb meem tsuas yog daws tau los ntawm kev hloov cov hniav. Nws yog ib qho teeb meem heev los hloov tag nrho cov iav, thiab nws ua rau cov khib nyiab tsis tsim nyog. Thaum lub cuab yeej sab nraud tau txais kev quab yuam sab nraud thiab vibrates thiab co, lub iav bevel hauv lub cuab yeej yuav raug muab tshem tawm. Yog li ntawd, cov hniav tsav tsis koom nrog, thiab kev sib hloov mus sij hawm ntev ntawm cov hniav tsav yuav ua rau hnav thiab tsim kua muag, ua rau cov hniav puas tsuaj. Yog tias tsis muaj kev ntsuas lubrication zoo, cov roj lubricating tuaj yeem siv tau manually rau cov hniav, uas yog qhov teeb meem nyuaj dua.

Txhawm rau kom ua tiav lub hom phiaj saum toj no, cov qauv siv hluav taws xob muab cov kev daws teeb meem hauv qab no: hmoov metallurgy high-density bevel hniav, nrog rau thawj cov hniav bevel, hauv qab ntawm thawj bevel hniav yog muab nrog cov hniav thib ob, thiab thawj bevel. Cov hniav thiab qhov thib ob bevel hniav Cov hniav sib npaug sib npaug ntawm qhov chaw ntawm cov hniav, ib txoj kab ncig yog teem rau hauv ib kawg ntawm thawj bevel hniav thiab lub thib ob bevel hniav, thiab ob qhov txwv rods yog muab rau ntawm kev sib txuas ntawm thawj bevel. hniav thiab tus hniav thib ob bevel, Ib qho kawg ntawm tus pas nrig txwv yog muab nrog lub voj voog txav, thiab lub voj voog txav tau nyob rau hauv lub voj voog ncig, thiab lwm qhov kawg ntawm txoj hlua txwv yog muab nrog ib qho kev sib txuas, thiab cov bolts. hla dhau ntawm ob txoj hlua txwv. Internal fixed kev twb kev txuas ntawm kev twb kev txuas blocks.

Zoo dua, qhov saum npoo ntawm tus hniav thib ob yog muab nrog lub voj voos, thiab ob sab ntawm lub voj voos yog symmetrically muab nrog swb zawj, thiab hauv qab kawg ntawm ob sab ntawm cov hniav sib kis yog symmetrically muab nrog sliders, thiab qhov loj. ntawm cov slider yog tib yam li cov slider Cov grooves yog sib txuam, thiab hauv qab ntawm ib kawg ntawm cov hniav kis tau tus mob yog muab nrog ib tug ruaj thaiv. Cov hniav kis tau tus mob, cov slider, thiab cov thaiv ruaj khov yog cov qauv sib xyaw, thiab cov hniav sib kis yog nyob rau saum npoo ntawm tus hniav thib ob.

Qhov zoo dua, cov roj nkag tau muab faib rau hauv ob lub iav bevel, thiab cov lej ntawm cov roj yuav sib npaug rau cov hniav sib kis. Ib qho kawg ntawm cov roj hla kev sib txuas lus nrog lub voj voog ncig, thiab qhov sib txawv ntawm txhua ob txoj kab sib kis tau muab. Lub qhov hluav taws xob roj, thiab lwm qhov kawg ntawm cov roj channel sib txuas nrog cov roj qhov hluav taws xob.

Zoo dua, cov qauv duab ntawm thawj cov hniav bevel thiab cov hniav thib ob bevel sib npaug.

Qhov zoo dua, qhov chaw kho qhov thaiv thiab ib sab ntawm tus hniav thib ob yog ob qho tib si muab nrog cov ntsia hlau sib txuas.

Zoo dua, txoj kab uas hla ntawm lub voj voog txav tau yog 1.2 npaug ntawm qhov dav ntawm txoj kab ncig.

Piv nrog rau cov duab ua ntej, cov txiaj ntsig zoo ntawm cov qauv siv hluav taws xob yog:

1. Vim yog kev ua haujlwm ntawm cov pas nrig txwv, nyob rau hauv cov txheej txheem siv ib txwm, nws zam kev vibration thiab co ntawm cov cuab yeej sab nraud nyob rau hauv qhov kev txiav txim ntawm sab nraud quab yuam, uas yuav ua rau cov hniav bevel nyob rau hauv lub cuab yeej yuav detached. Lub thaiv txav tau nyob rau hauv lub voj voog ncig, thiab cov pas nrig txwv tsis cuam tshuam qhov kev sib hloov ntawm thawj tus hniav thiab tus thib ob bevel hniav, thiab txoj kev no ruaj khov thiab txhim khu kev qha.

2. Txij li txhua tus hniav kis tau tus mob nyob rau hauv cov cuab yeej no yog detachable, thaum ib tug tej yam kis tau tus mob ntawm tus hniav bevel yog puas, ib tug tib kis hniav hniav yuav disassembled thiab hloov, uas daws qhov teeb meem uas thaum kis tau tus mob ntawm tus thawj ntaus ntawv. puas lawm, nws tsuas yog muab tshem tawm Qhov teeb meem tsuas yog daws tau los ntawm kev hloov tag nrho cov hniav bevel, thiab cov txheej txheem disassembly yog qhov yooj yim, uas tsis txhob muaj cov khoom pov tseg.

3. Txij li thaum muaj cov roj channel nyob rau hauv qhov sib txawv ntawm lub nplhaib khiav thiab cov iav kis tau tus mob, thiab lub nplhaib khiav tau ntim nrog cov roj lubricating ua ntej, thaum thawj tus hniav bevel thiab lub thib ob bevel hniav tig, lub nplhaib yuav txav mus rau hauv qab. qhov kev txiav txim ntawm lub voj voog movable thaiv. Cov roj lubricating nyob rau hauv txoj kev squeezes rau hauv cov roj channel thiab ntws mus rau qhov sib txawv ntawm cov hniav sib kis, thiaj li ua tiav cov nyhuv ntawm lubricating ntawm cov hniav sib kis.

Nyob rau hauv daim duab: 1. Thawj bevel hniav; 2. Cov hniav kis tau tus mob; 3. Cov pas nrig txwv; 4. Qhov thib ob bevel hniav; 5. Qhov txuas txuas; 6. Lub voj voog khiav; 7. Lub voj voog txav tau yooj yim; 8. Lub kaum sab xis; 9, cog; 10, ruaj khov; 11, swb thaiv; 12, oil channel.

Cov kev nthuav dav

Cov kev daws teeb meem nyob rau hauv lub embodiments ntawm lub invention tam sim no yuav qhia meej thiab meej piav qhia hauv qab no nrog rau cov duab kos nyob rau hauv lub embodiments ntawm tam sim no invention. Obviously, cov piav embodiments tsuas yog ib feem ntawm lub embodiments ntawm tam sim no invention, tsis yog tag nrho cov ntawm lawv. piv txwv. Raws li cov embodiments ntawm cov qauv siv hluav taws xob tam sim no, tag nrho lwm cov embodiments tau los ntawm cov neeg ntawm cov txuj ci zoo tib yam hauv kev kos duab yam tsis muaj kev siv tswv yim muaj tswv yim yog los ntawm kev tiv thaiv ntawm cov qauv siv hluav taws xob tam sim no.

Thov xa mus rau daim duab 1 txog 8, cov qauv siv hluav taws xob muab cov kev daws teeb meem: hmoov metallurgy high-density bevel hniav, nrog rau thawj cov hniav bevel 1, hauv qab ntawm thawj bevel hniav 1 yog muab nrog cov hniav bevel thib ob 4, thiab cov thawj bevel hniav 1 kis hniav 2 yog sib npaug zos rau ntawm qhov chaw ntawm lub thib ob bevel hniav 4, thiab ib ncig 6 yog teem nyob rau hauv ib kawg ntawm thawj bevel hniav 1 thiab lub thib ob bevel hniav 4, thiab kev sib txuas ntawm thawj bevel. Cov hniav 1 thiab tus hniav thib ob bevel 4 Muaj ob txoj hlua khi 3, ib qho kawg ntawm txoj hlua khi 3 yog muab nrog lub voj voog txav 7, thiab lub voj voog txav tau 7 yog nyob rau hauv lub voj voog 6, thiab lwm qhov kawg ntawm qhov txwv rods 3 yog muab nrog ib tug txuas thaiv 5, Thiab ob txwv rods 3 yog fixedly txuas los ntawm sab hauv ntawm lub txuas txuas 5 los ntawm bolts.

Txhawm rau ua kom yooj yim rau kev tshem tawm ntawm cov hniav sib kis 2, hauv qhov embodiment, zoo dua, qhov chaw ntawm tus hniav thib ob bevel 4 yog muab nrog lub voj voos 8, thiab ob sab ntawm lub voj voos 8 yog symmetrically muab nrog swb grooves 9, thiab cov hauv qab ntawm ob sab ntawm cov hniav sib kis 2 Ib tug slider 11 yog teem symmetrically nyob rau hauv lub kawg, thiab qhov luaj li cas ntawm tus slider 11 phim lub chute 9, thiab ib tug ruaj thaiv 10 yog muab nyob rau hauv qab ntawm ib kawg ntawm cov kis hniav 2 , thiab cov hniav kis tau tus mob 2, tus slider 11, thiab cov taag thaiv 10 yog ib qho kev sib xyaw ua ke, thiab cov hniav kis tau tus mob 2 yog nyob rau saum npoo ntawm tus hniav thib ob bevel 4.

Txhawm rau kom cov roj lubricating tuaj yeem ntws mus rau hauv qhov sib txawv ntawm txhua ob txoj kev sib kis ntawm cov hniav 2 los ntawm kev sib tw 6 thiab lubricate cov hniav sib kis 2, nyob rau hauv no embodiment, nyiam dua, sab hauv ntawm ob bevel iav 4 yog faib nrog roj nqe 12, thiab cov roj passages Cov naj npawb ntawm 12 sib tw cov naj npawb ntawm cov hniav sib kis 2, ib kawg ntawm cov roj channel 12 sib txuas lus nrog cov annular khiav 6, lub qhov hluav taws xob roj yog muab rau ntawm qhov sib txawv ntawm txhua ob kis hniav 2, thiab lwm yam kawg roj channel 12 sib txuas lus nrog cov roj qhov hluav taws xob.

Txhawm rau kom phim thawj tus hniav bevel 1 thiab qhov thib ob bevel hniav 4, nyob rau hauv no embodiment, zoo dua, cov qauv duab ntawm thawj bevel hniav 1 thiab lub thib ob bevel hniav 4 yog sib npaug.

Txhawm rau txhim kho cov kis tau tus mob 2 nyob rau hauv qhov kev txiav txim ntawm kev txhim kho thaiv 10, hauv qhov no, qhov zoo dua, qhov chaw ntawm qhov kho qhov thaiv 10 thiab ib sab ntawm qhov thib ob bevel iav 4 yog ob qho tib si muab nrog cov ntsia hlau sib txuas.

Tsis tuaj yeem poob ntawm txoj kab ncig 6 rau lub voj voog ncig 7, txoj kab uas hla ntawm lub voj voog ncig 7 yog 1.2 npaug ntawm qhov dav ntawm txoj kab ncig 6.

Lub hauv paus ntsiab lus ntawm kev ua haujlwm thiab kev siv ntawm cov qauv siv hluav taws xob: thaum siv cov qauv siv hluav taws xob, ob txoj hlua txwv 3 yog thawj zaug kho los ntawm sab hauv ntawm qhov txuas 5 los ntawm bolts, thiab lub sijhawm no ob txoj hlua txwv 3 daim ntawv tag nrho. , thiab lub voj voog txav tau 7 ntawm ob qhov kawg ntawm txoj hlua txwv 3 yog nyob rau sab hauv ntawm lub voj voog ncig 6, thiab txoj kab uas hla ntawm lub voj voog txav tau 7 yog 1.2 npaug ntawm qhov dav ntawm txoj kab ncig 6, thiab lub voj voog txav mus los tau 7. thaiv 7 yog nyob nruab nrab ntawm thawj bevel hniav 1 thiab lub thib ob Thaum lub thib ob bevel hniav 4 tig, vim qhov kev txiav txim ntawm lub voj voog 6, qhov txwv rod 3 yuav tsis cuam tshuam qhov kev sib hloov ntawm thawj bevel hniav 1 thiab lub thib ob bevel hniav. 4, thiab tib lub sijhawm kom tsis txhob muaj kev vibration ntawm lub cuab yeej sab nraud nyob rau hauv qhov kev txiav txim ntawm sab nraud quab yuam Thaum co thiab co, lub bevel iav sab hauv lub cuab yeej yuav raug muab tshem tawm. Thaum cov iav kis tau tus mob 2 puas lawm thiab yuav tsum tau hloov, lub ntsia liaj qhov rooj ntawm qhov chaw kho qhov thaiv 10 raug tshem tawm, thiab cov iav kis tau tus mob 2 raug rub tawm los ntawm sab hauv ntawm lub kaum sab xis 8, thiab nruab cov iav kis tau tus mob tshiab 2. . Thaum txhim kho, ua kom cov sliders 11 ntawm ob sab ntawm lub iav kis tau tus mob 2 nrog lub chute 9 thiab thawb rau hauv. Tom qab thawb mus rau hauv qab, siv bolts kom dhau los ntawm qhov chaw kho qhov thaiv 10 thiab lub thib ob bevel iav 4. Cov ntsia liaj qhov rooj ntawm qhov chaw tuaj yeem raug ntsia tau ruaj khov los ua kom tiav kev hloov ntawm ib qho kev sib kis tus hniav 2, uas daws qhov teeb meem uas cov hniav sib kis 2 tsis tuaj yeem hloov ib tus zuj zus thaum cov hniav sib kis 2 puas lawm, thiab tag nrho cov hniav bevel yuav tsum tau. disassembled thiab hloov. Thaum lub sij hawm ib txwm siv ntawm thawj bevel hniav 1 thiab lub thib ob bevel hniav 4, vim hais tias lubricating roj tau sau rau hauv lub sab hauv ntawm lub nplhaib khiav 6 nyob rau hauv ua ntej, lub voj voog movable block 7 yuav txav lub nplhaib thaum thawj bevel hniav 1 thiab cov thib ob bevel hniav 4 tig. Lub lubricating roj nyob rau hauv lub khiav 6 yog squeezed, thiaj li hais tias lub lubricating roj ntws los ntawm sab hauv ntawm cov roj channel 12 mus rau hauv qhov sib txawv ntawm txhua txhua ob kis tau tus mob 2, yog li lubricating lub kis tau tus mob cov hniav 2.

Txawm hais tias lub embodiments ntawm lub invention tam sim no tau qhia thiab piav qhia, cov neeg txawj nyob rau hauv cov kos duab tuaj yeem nkag siab tias ntau yam kev hloov pauv thiab kev hloov kho tuaj yeem ua rau cov embodiments yam tsis tau tawm ntawm lub hauv paus ntsiab lus thiab tus ntsuj plig ntawm kev tsim tam sim no, kev hloov pauv thiab kev hloov kho, cov peev txheej ntawm cov khoom siv. cov qauv siv hluav taws xob tam sim no yog txhais los ntawm cov lus thov ntxiv thiab lawv qhov sib npaug.
